SMD LED-Dome Lens Type
return to LEDs & LED Displays page

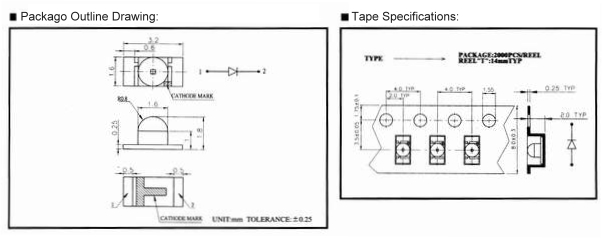

1206 Package(3.2X1.6X1.8 mm)

Part No.

Material

Emitting Color
Len Type
Wavelength
(Typ)
Wavelength

Viewing Angle

2£c 1/2
IF=20mA

£fP(nm)
£fD(nm)

Min(mcd)
Typ(mcd)
SD-1206GC
GaP
Green
Water Clear
570
568
25
40
 40¢X
SD-1206YC
GaAsp
Yellow
Water Clear
590
589
18
40
SD-1206EC
GaAsp
Orange
Water Clear
620
630
25
40
SD-1206SRC-P
AIGaAs
Red
Water Clear
645
660
35
70
SD-1206BC
SiC
Blue
Water Clear
465
430
20
40
SD-1206MBC
SiC
Brightness Blue
Water Clear
470
468
25
60
SD-1206QBC
GaN
Super Brightness Blue
Water Clear
470
-
90
150
 40¢X
SD-1206QGC
AIGalnP
Super Brightness Green
Water Clear
570
574
110
330
SD-1206QYC
AIGalnP
Super Brightness Yellow
Water Clear
590
592
150
350
SD-1206QEC
AIGalnP
Super Brightness Orange
Water Clear
620
630
135
350
SD-1206QRC
AIGalnP
Super Brightness Red
Water Clear
630
650
90
160
SD-1206QNC
AIGalnP
Super Brightness Amber
Water Clear
610
618
90
180
SD-1206T2GC
GaN
Super Brightness Green
Water Clear
525
523
750
1000
SD-1206Q7GC
AIGalnP
Super Brightness Yellow
Water Clear
589
591
300
600
SD-1206Q7NC
AIGalnP
Super Brightness Amber
Water Clear
610
618
300
600
SD-1206Q7RC
AIGalnP
Super Brightness Red
Water Clear
630
650
350
600
SD-1206Q7EC
AIGalnP
Super Brightness Orange
Water Clear
624
632
300
500
