Flux LED Lamps
return to LEDs & LED Displays page

Part No

Material

Emitted

Color

Lens Color

Wave

Length

λ P(nm)

VF(V)

Total Luminous
Flux (mim)

Viewing

Angle

2 θ 1/2

(deg.)

at

IF=mA

Typ.

Max.

at

IF=mA

Min.

Typ.
G1-434-ASY
AIInGaP
Yellow
Water Clear
595
70
2.2
2.67
70
720
1600

60
G1-434-TSY
AIInGaP
Yellow
Water Clear
595
70
2.6
3.15
70
1430
2500
40
G1-435-ASR
AIInGaP
Orange
Water Clear
625
70
2.1
2.67
70
720
1600
60
G1-435-TSR
AIInGaP
Orange
Water Clear
625
70
2.5
3.03
70
1000
3750
40
G1-433-525E
GaN
Green
Water Clear
525
20
3.6
4.0
30
720
1500
40
G1-437-E
GaN
Blue
Water Clear
470
20
3.6
4.0
30
250
400
40
G1-430-E
GaN
White
Water Clear
-
20
3.6
4.0
30
1000
2000
40
G5-434-ASY
AIInGaP
Yellow
Water Clear
595
70
2.3
2.6
70
700
1500
60
G5-435-ASR
AIInGaP
Orange
Water Clear
625
70
2.1
2.67
70
700
1500
60
G5-433-525E
GaN
Green
Water Clear
525
30
3.6
4.0
30
750
1300
40
G5-437-E
GaN
Blue
Water Clear
470
30
3.6
4.0
30
220
350
40
G5-430-E
GaN
White
Water Clear
-
30
3.6
4.0
30
800
1500
40

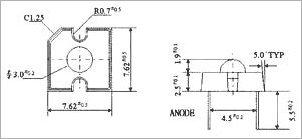

G1 Dimension Unit: mm
G5 Dimension Unit: mm
